When it comes to reliable and durable components in high-pressure piping systems, ASTM A105 flanges are a go-to choice for engineers and manufacturers around the world. Made from forged carbon steel, these flanges are widely used in a variety of industries due to their high strength, cost-effectiveness, and excellent machinability. Whether you’re dealing with oil and gas pipelines, petrochemical systems, or power generation plants, ASTM A105 flanges provide the performance and reliability required in demanding environments.

🔧 What is ASTM A105?

ASTM A105 is a specification set by ASTM International for forged carbon steel piping components, especially flanges, fittings, valves, and other parts for high-temperature service in pressure systems. This standard covers carbon steel materials that are forged, seamless, or wrought and are meant to be used in pressure systems at ambient- to high-temperature conditions.

🛠️ Types of ASTM A105 Flanges

ASTM A105 flanges are available in a wide variety of types to suit different piping requirements. Common types include:

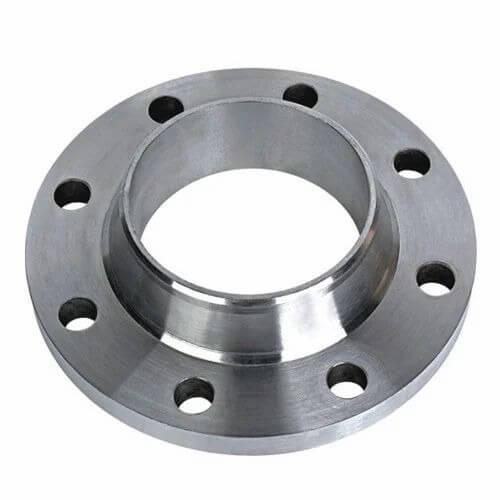

1. Weld Neck Flanges (WN)
• Best suited for high-pressure and high-temperature applications.
• Long tapered hub provides reinforcement and minimizes stress concentrations.
2. Slip-On Flanges (SO)
• Easier to install and align.
• Ideal for low-pressure, non-critical applications.
3. Blind Flanges (BL)
• Used to close the ends of piping systems or vessels.
• Allow easy access for inspection or modification.
4. Socket Weld Flanges (SW)
• Suitable for small-diameter, high-pressure pipes.
• Provide strong connection with excellent leakage prevention.
5. Threaded Flanges (TH)
• Used without welding for low-pressure applications.
• Ideal for systems where welding is not practical.
6. Lap Joint Flanges (LJ)
• Used with stub ends for systems requiring frequent dismantling.
• Not pressure-holding on their own but allow easy maintenance.

🔍 Key Properties of ASTM A105 Flanges

• Material Composition: Primarily carbon steel, which includes carbon, manganese, phosphorus, sulfur, and silicon.
• Tensile Strength: Minimum 70 ksi (485 MPa)
• Yield Strength: Minimum 36 ksi (250 MPa)
• Temperature Range: Suitable for -29°C to 425°C (-20°F to 800°F)
• Pressure Ratings: Available in classes like 150#, 300#, 600#, 900#, 1500#, and 2500#

🌍 Applications of ASTM A105 Flanges

Thanks to their strength and durability, ASTM A105 flanges are used across many industries:

• Oil and Gas – for connecting pipes in high-pressure fluid transport
• Power Plants – steam, water, and chemical lines
• Petrochemicals – corrosive and pressurized chemical environments
• Shipbuilding – marine piping systems
• Pharmaceutical and Food Industry – sanitary systems requiring robust and safe connections

✅ Advantages of Using ASTM A105 Flanges

• Cost-Effective: Carbon steel is more affordable than stainless steel or exotic alloys.
• High Strength: Suitable for demanding pressure and temperature environments.
• Wide Availability: Manufactured globally and available in various sizes and pressure classes.
• Machinability: Easy to machine and weld for fabrication and modification.
• Corrosion Resistance (with coating): Often coated or galvanized for protection against corrosion.

🔒 Heat Treatment & Testing

ASTM A105 flanges can be heat-treated via normalizing, quenching and tempering, or annealing to meet the mechanical property requirements. They undergo various tests, such as:

• Hydrostatic Testing
• Ultrasonic Testing
• Hardness Testing
• Chemical & Mechanical Analysis

📏 Standards and Specifications

ASTM A105 flanges comply with multiple international standards:

• ASME B16.5 – for pipe flanges and flanged fittings up to 24"
• ASME B16.47 – for large-diameter steel flanges
• ANSI, DIN, EN, JIS standards for global compatibility

🧩 Conclusion

ASTM A105 flanges offer a dependable solution for a wide array of piping applications. Their blend of strength, machinability, affordability, and versatility makes them a top choice in industries where pressure integrity and performance matter most. When properly selected, installed, and maintained, these flanges can provide years of trouble-free service even in the most challenging environments.
