If you've ever built or worked with electronics, you've probably come across the term AC DC power supply. It might not sound exciting, but it’s one of the most important parts of any device. And one of the biggest choices you'll face is whether to go with a linear or a switching power supply.

They both do the same basic job turning power from your wall outlet (AC) into a type that electronics can use (DC). But how they do it is very different, and that can affect things like size, cost, efficiency, and even noise.

Let’s break it down in a way that’s easy to understand.

What Is an AC DC Power Supply?

Before diving into the details, let’s keep it simple: an AC DC power supply changes the electricity from your wall outlet (which is alternating current, or AC) into the kind that electronics need (direct current, or DC). That’s it!

But there are two main ways to do this linear and switching and each has its pros and cons depending on your needs.

What Is a Linear Power Supply?

A linear power supply is the “old school” method. It works by using a big transformer to lower the voltage, then cleaning it up using some electronic parts to give you smooth, steady DC power.

Pros:

• Super clean power – Great for sensitive electronics like audio equipment and medical devices where electrical noise can be a problem.
• Simple design – Fewer parts means it's easier to fix and understand.

Cons:

• Big and heavy – The transformer adds a lot of size and weight.
• Not very efficient – It turns a lot of extra energy into heat.
• Gets hot – All that heat means it often needs large cooling systems.

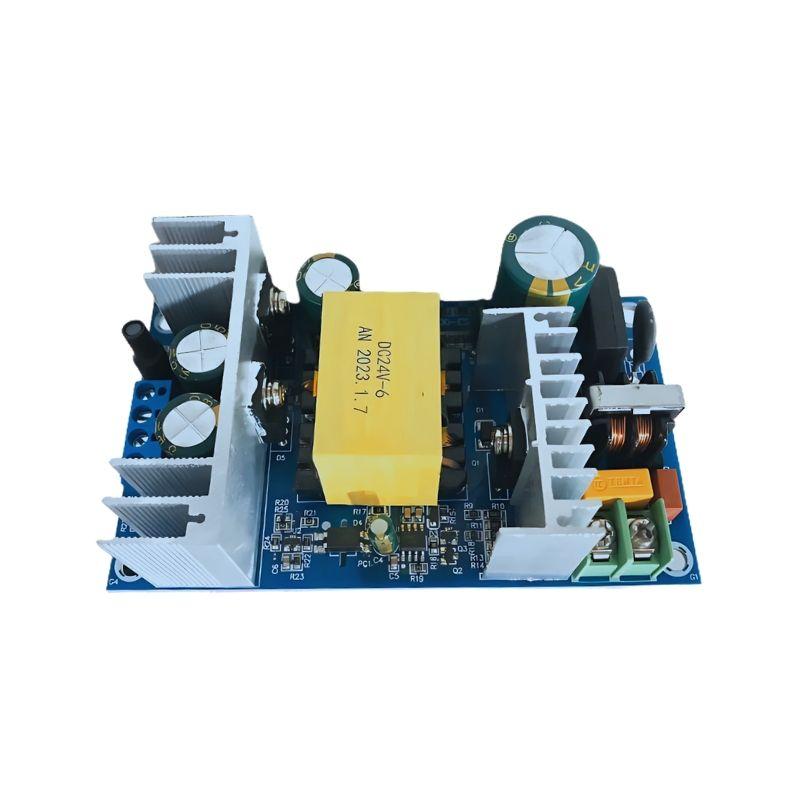

What Is a Switching Power Supply?

A switching power supply is a newer, more high-tech option. Instead of just stepping down the voltage like a linear supply, it first changes AC to DC, then rapidly switches the power on and off at high speeds using small components. This process makes it much more efficient.

Pros:

• High efficiency – Less energy wasted as heat.
• Small and lightweight – Great for compact devices.
• Flexible voltage options – Can easily work with different outputs.

Cons:

• More complex – Has more parts and is harder to fix.
• Can be noisy – May create electrical interference (EMI), which can affect sensitive gear if it’s not well designed.

Quick Comparison

Which One Should You Use?

Go with a linear power supply if:

• You're powering sensitive audio or medical devices where clean power is a must.
• You don’t mind a bigger size or extra heat.
• You prefer a simpler setup that’s easy to maintain.

Choose a switching power supply if:

• You want something efficient and compact.
• Your project involves LEDs, battery charging, or mobile equipment.
• You care about saving energy and space.

What Are Power Supply Manufacturers Doing Today?

These days, many power supply products are working to combine the best features of both types. For example, some switching supplies now have advanced filters to reduce noise, making them more suitable for sensitive devices. At the same time, newer linear models are being made more efficient and reliable for specific uses.

So, the gap between the two is shrinking. Your choice really comes down to your needs—how much space you have, how quiet the power needs to be, and how much heat or energy waste you can tolerate.

Final Thoughts

Picking between a linear and switching AC DC power supply doesn’t have to be confusing. If you understand what each one does best, you can make a smarter choice for your project or device.

• Linear supplies are simple, quiet, and stable.
• Switching supplies are smaller, cooler, and more efficient.

Either way, knowing what powers your electronics gives you a better understanding of how things work—and how to make sure they work better.
