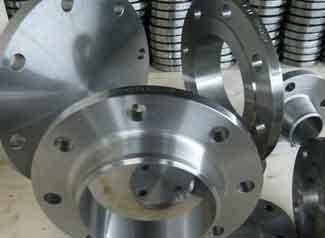

Inconel 600 flanges are a crucial component in high-performance industrial systems where superior resistance to heat and corrosion is required. Manufactured using Inconel 600, a nickel-chromium-iron alloy, these flanges exhibit outstanding mechanical strength, oxidation resistance, and corrosion resistance, even in extreme environments. As industries continue to evolve and demand materials capable of performing under severe conditions, Inconel 600 flanges have gained prominence in applications ranging from nuclear reactors to chemical processing and aerospace engineering.

What is Inconel 600?

Inconel 600 is a solid solution-strengthened alloy composed primarily of nickel (≥72%), chromium (14-17%), and iron (6-10%). It was developed for applications requiring high-temperature strength and corrosion resistance. The alloy resists a wide range of corrosive media, including organic and inorganic compounds, chloride-ion stress-corrosion cracking, and oxidizing and reducing environments.

This unique alloy maintains its structural integrity across a wide temperature range, making it ideal for cryogenic conditions as well as high temperatures above 2000°F (1093°C). Its resistance to carburization and oxidation at elevated temperatures further enhances its usability in challenging environments.

Key Properties of Inconel 600 Flanges

1. Corrosion Resistance:
   Inconel 600 flanges are highly resistant to a variety of corrosive agents, including alkalis, chlorides, organic acids, and oxidizing salts. They are especially useful in caustic solutions such as sodium hydroxide and are unaffected by stress-corrosion cracking in chloride-bearing environments.

2. Oxidation Resistance:
   These flanges perform excellently in high-temperature oxidizing conditions, resisting scaling and degradation even after prolonged exposure.

3. High-Temperature Strength:
   Inconel 600 flanges retain their strength and toughness at both sub-zero and elevated temperatures, making them ideal for thermal cycling applications.

4. Weldability:
   Inconel 600 has good weldability using conventional welding processes like TIG and MIG. Welded flanges made from this alloy maintain strength and corrosion resistance in the heat-affected zone.

5. Pressure-Temperature Endurance:
   These flanges are ideal for use in high-pressure and high-temperature systems such as steam generators and furnace equipment.

Common Types of Inconel 600 Flanges

Inconel 600 flanges are available in a wide range of types to suit specific industrial applications:

• Weld Neck Flanges: Ideal for high-pressure applications, these flanges are butt-welded to the pipe for added strength.

• Slip-On Flanges: These are easy to install and cost-effective, typically used in lower-pressure systems.

• Blind Flanges: Used to terminate pipelines, blind flanges help in maintenance and system isolation.

• Socket Weld Flanges: Best suited for small-diameter, high-pressure piping systems.

• Lap Joint Flanges: These are used where frequent dismantling is required, especially in systems prone to corrosion.

• Threaded Flanges: Ideal for low-pressure systems without welding.

• Ring Type Joint (RTJ) Flanges: Used for high-pressure and high-temperature applications with metallic gaskets to ensure leak-tight connections.

Applications of Inconel 600 Flanges

The versatile properties of Inconel 600 flanges make them suitable for a wide range of critical industries:

1. Chemical Processing:
   Inconel 600 flanges are widely used in reactors, heat exchangers, evaporators, and piping systems handling corrosive chemicals like hydrochloric acid and chlorine gas.

2. Nuclear Industry:
   These flanges are employed in steam generators, reactor components, and fuel element cladding due to their excellent thermal and corrosion resistance.

3. Aerospace Industry:
   Jet engines, gas turbines, and exhaust ducts utilize Inconel 600 flanges because of their strength at high temperatures and resistance to oxidation.

4. Power Generation:
   Used in superheaters, boiler feedwater heaters, and turbine components, Inconel 600 flanges can withstand high-pressure steam conditions.

5. Heat Treatment Equipment:
   The alloy's ability to resist scaling and maintain mechanical properties at elevated temperatures makes it ideal for furnace parts and thermocouple sheaths.

Standards and Specifications

Inconel 600 flanges are manufactured in compliance with international standards to ensure quality and consistency, including:

• ASTM B564 / ASME SB564

• ANSI/ASME B16.5

• ASME B16.47 (Series A & B)

• DIN, EN 1092, BS4504, BS10 standards

• Pressure classes: 150#, 300#, 600#, 900#, 1500#, 2500#

Conclusion

Inconel 600 flanges are the material of choice when high strength, corrosion resistance, and temperature stability are essential. Their widespread use across multiple industries stands as a testament to their superior performance in some of the most demanding conditions. Whether in chemical processing, aerospace, nuclear, or power generation sectors, Inconel 600 flanges offer long-lasting performance and safety, making them a vital part of modern industrial infrastructure. As industries face harsher environments and stricter performance requirements, the demand for reliable, high-performance materials like Inconel 600 continues to grow.
