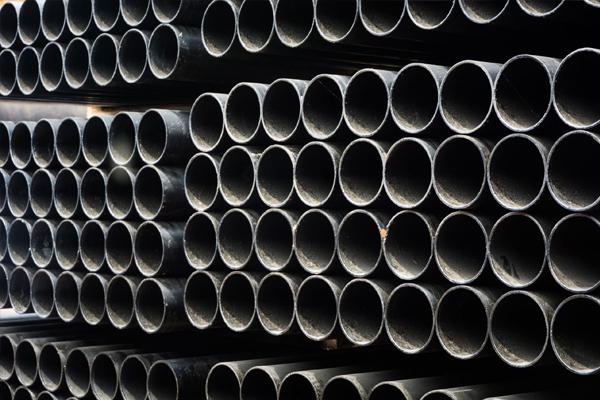

API 5L Grade B pipes are among the most widely used carbon steel pipe grades in the oil, gas, and petrochemical industries. Developed under the American Petroleum Institute (API) 5L specification, these pipes are designed for the transmission of oil, gas, and water in both onshore and offshore environments. The versatility, strength, and cost-effectiveness of API 5L Grade B pipes make them ideal for a wide range of applications.
The API 5L specification covers seamless and welded steel line pipes. These pipes are primarily used for the transportation of petroleum, natural gas, and water from oilfields to refineries and various industrial areas. The specification provides two product levels:
PSL1 (Product Specification Level 1) – the standard quality level.
PSL2 (Product Specification Level 2) – higher mechanical and chemical requirements with additional testing.
API 5L Grade B is part of both PSL1 and PSL2 categories, with PSL2 having stricter quality standards.
The chemical composition of API 5L Grade B pipes ensures strength and corrosion resistance while maintaining weldability:
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.28 |
| Manganese (Mn) | 0.40 – 1.20 |
| Phosphorus (P) | ≤ 0.030 |
| Sulfur (S) | ≤ 0.030 |
| Vanadium, Niobium, Titanium | ≤ 0.15 (combined) |
These values can vary slightly depending on whether the pipe is PSL1 or PSL2.
API 5L Grade B pipes provide dependable strength and performance in demanding conditions:
| Property | Requirement |
|---|---|
| Yield Strength | ≥ 245 MPa (35,500 psi) |
| Tensile Strength | 415 – 760 MPa (60,200 – 110,200 psi) |
| Elongation | Depends on pipe thickness and diameter |
The superior mechanical properties ensure the pipes perform efficiently in high-pressure environments.
API 5L Grade B pipes are manufactured in the following forms:
Seamless Pipe (SMLS): Made by extrusion, seamless pipes have uniform strength and are used in high-pressure applications.
Welded Pipe: Manufactured by welding steel plates or strips. Includes:
ERW (Electric Resistance Welded)
LSAW (Longitudinal Submerged Arc Welded)
SSAW (Spiral Submerged Arc Welded)
Seamless pipes are generally preferred for critical applications, while ERW and LSAW pipes are more economical for moderate-pressure environments.
API 5L Grade B pipes come with various end types to suit different applications:
Plain End (PE)
Beveled End (BE)
Threaded End (TE)
Beveled ends are typically used for welding, while threaded ends are suitable for mechanical joining.
To enhance durability and corrosion resistance, the pipes can be coated with:
Fusion Bonded Epoxy (FBE)
3-Layer Polyethylene (3LPE)
Coal Tar Enamel
Varnish or Black Paint
These coatings are essential for pipelines exposed to corrosive soils or marine environments.
API 5L Grade B pipes are used across numerous industries due to their strength and reliability:
Oil and Gas Industry: For the transmission of crude oil, natural gas, and refined petroleum products.
Petrochemical Plants: Used in various processes for fluid transport under pressure.
Water and Sewage Pipelines: Suitable for potable water and waste transportation.
Structural Applications: Used in infrastructure projects and heavy engineering constructions.
Boiler and Power Plants: Ideal for high-temperature and high-pressure pipelines.
High Strength: Able to withstand high pressure and mechanical stress.
Excellent Weldability: Can be welded using standard techniques.
Corrosion Resistance: Coatings enhance service life in corrosive environments.
Cost-Effective: Offers a good balance of performance and price.
Wide Availability: Easily accessible globally due to standardization.
API 5L Grade B pipes are a cornerstone in pipeline systems worldwide. Their robust mechanical properties, adaptability, and compliance with global standards make them an excellent choice for the transmission of oil, gas, and water. Whether for upstream oilfield pipelines or municipal water supply systems, these pipes deliver performance and reliability in the most demanding environments.
Choosing API 5L Grade B pipes ensures durability, safety, and long-term cost savings, making them a smart investment for industries and infrastructure development worldwide.
