The slide gate plate is a critical functional refractory component widely applied in modern steelmaking for the precise control of molten steel flow from the ladle or tundish. It operates in combination with a nozzle system, stopper rod or ladle shroud, and a complete slide gate mechanism. As steelmaking processes become more automated, high-speed, and quality-oriented, the performance of slide gate plates has become indispensable to ensure safe casting, stable flow rate, long service life, and consistent steel quality.
Because slide gate plates must withstand extremely aggressive conditions—thermal shock, severe abrasion, steel oxidation, chemical corrosion, and mechanical stress—the selection of their materials, design, and manufacturing processes plays a decisive role in casting stability. This article provides a detailed technical overview suitable for metallurgical engineers, refractory specialists, and casting operators who require deep understanding of slide gate plate technology.

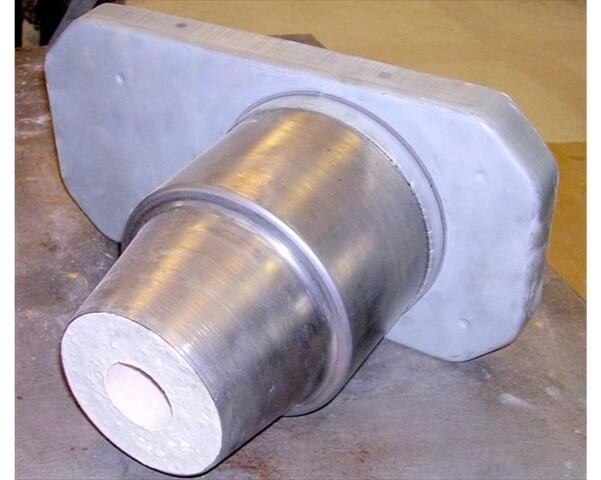

A slide gate plate is a shaped refractory element installed in a ladle or tundish slide gate system that controls the opening and closing of molten steel. It typically consists of two or three plates:
Upper Plate – fixed to the ladle bottom or tundish bottom nozzle housing.
Lower Plate – movable plate that slides horizontally to adjust the area of the flow opening.
Middle Plate (for 3QC systems) – used in triple-plate mechanisms for improved thermal insulation and sealing.
The slide gate plates form a sealed interface with the nozzle. During steel tapping and continuous casting, the operator adjusts the gate position to regulate the steel flow rate, ensuring casting stability and avoiding turbulence, oxidation, and inclusion entrainment.
Flow Control: Regulates molten steel discharge from ladle/tundish during casting.
Sealing: Provides reliable contact surfaces that prevent steel leakage and air ingress.
Wear Resistance: Withstands high erosive forces from flowing steel, refractories, and steel inclusions.
Thermal Shock Resistance: Maintains mechanical integrity despite rapid temperature changes (from ambient to >1600°C).
Operational Safety: Prevents catastrophic leakage that could lead to equipment damage or operator risk.
Without a properly designed and maintained slide gate plate system, casting efficiency, product quality, and plant safety would be significantly compromised.
Slide gate plate configurations vary according to the number of plates and mechanism design. The most common systems include:
Upper stationary plate
Lower movable plate
This is the most common design for ladles and tundishes due to its structural simplicity and reliable sealing surface.
Upper plate
Middle plate
Lower plate
The additional plate improves thermal insulation, enhances sealing during long casting durations, and reduces wear. Common in high-productivity continuous casting.
These are specialized composite systems with enhanced anti-erosion and thermal shock resistance using carbon-bonded materials.
Widely used in global steel plants, each series features different combinations of alumina-carbon, zirconia-bonded alumina, or spinel-bearing matrixes designed for specific casting grades such as ultra-low-carbon steels, high-Al steels, or stainless steel grades.
Slide gate plates are made from high-performance refractories engineered to withstand steelmaking conditions. The most common material systems are:
Alumina content: 85–95%
Carbon content: 8–15%
Additives: Si, SiC, antioxidants, metal additives
Advantages: Excellent thermal shock resistance, moderate cost
Applications: General carbon steel and alloy steel casting
ZrO₂ content: 5–20%
Alumina matrix strengthened by zirconia grains
Advantages: High abrasion resistance, superior corrosion resistance
Applications: High wear segments, SS and high-Al steel grades
Used mainly where slag attack is a major factor
Superior corrosion resistance to basic slags
Applications: Special ladle metallurgy or secondary refining
Improved corrosion resistance and reduced steel reactivity
Increasingly used for clean steel production
Applications: Ultra-low-oxygen steel, stainless steel, and automotive steel grades
Multi-layer design: wear zone + insulation zone + structural zone
Benefits: Prolonged service life and reduced risk of thermal cracking
The correct material selection is determined by casting time, steel grade, tundish temperature, flow rate, and your plant’s operational conditions.
To achieve the necessary density and microstructure, slide gate plates undergo advanced refractory manufacturing:
High-purity alumina, synthetic spinel, zirconia
Graphite flakes (high purity, controlled particle size)
Anti-oxidants: Si, Mg, Al
Resin or pitch binders
Homogeneous dispersion of carbon
Controlled temperature to avoid premature resin curing
Cold Isostatic Pressing (CIP) – Ensures uniform density, preferred for premium plates
Uniaxial Hydraulic Pressing – Standard manufacturing route
Vibration or Vacuum Forming – Used in composite plates
Controlled heat treatment cycles
Stabilizes resin bonding and carbon distribution
Typical firing temperatures range from 1300–1650°C, depending on material type.
Precision grinding of sliding surfaces
Dimensional accuracy ensures proper fit with slide gate mechanism
Manufacturing quality directly influences plate life and sealing performance.
Slide gate plates suffer simultaneous attack from molten steel flow, thermal shock, oxidation, and mechanical friction. Major failure modes include:
High-velocity steel jets carrying inclusions erode the flow channel
Excessive erosion leads to leakage or unstable flow
From ambient temperature to 1600°C within minutes
Carbon provides flexibility; insufficient carbon increases cracking risk
Oxygen penetration burns carbon, weakening structure
Results in surface spalling and increased sliding friction
Molten steel penetrates micro-cracks
Causes swelling, crack propagation, or plate jamming
Aggressive slags attack alumina or magnesia phases
Zirconia additions help resist chemical degradation
The sliding surfaces undergo friction during gate operation
Poor lubrication or misalignment accelerates wear
Understanding failure mechanisms is crucial for designing long-life plate systems.
A high-quality slide gate plate must deliver:
To survive repeated opening/closing cycles and rapid heating.
Smooth movement ensures stable flow control.
Prevents breakage during clamping and operation.
Especially in the bore or wear zone.
Ensures perfect sealing and alignment.
Critical to avoid sticking, swelling, or leakage.
Slide gate plates are used throughout the steelmaking process:
Installed at ladle bottom
Must withstand long casting sequences (often >2 hours)
Higher thermal and mechanical load than tundish plates
Used to regulate flow to the mold
Exposure to lower temperatures but require high stability for precision casting
Ultra-clean steel production
High-aluminum steels (require anti-corrosion systems)
Stainless steel (requires zirconia-bearing plates)
Modern slide gate plate technology continues to evolve:
Improved crack resistance and longer plate life.
Cold isostatic pressing creates smaller pore structures and better wear resistance.
Used for ultra-low-oxygen steel grades.
Optimized for extreme erosion zones while reducing cost in non-critical zones.
The slide gate plate is a sophisticated refractory component responsible for precise flow control and operational safety in ladle and tundish systems. Its reliability directly influences casting performance, product quality, and plant productivity. With advanced material systems such as alumina-carbon, zirconia-enhanced alumina, spinel composites, and engineered layered structures, slide gate plates continue to evolve to meet the demands of high-speed, clean-steel production.
